Speaker Wire Color Codes


by Jeff Fisher

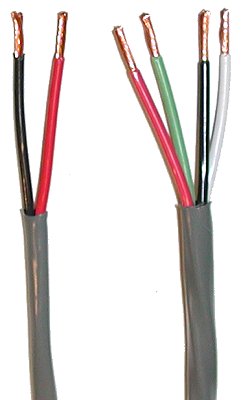

Four conductor speaker wire usually has a black, green, red, and white (or yellow) wire.

Server does not support image manipulation.

Although there is no standard that we know of, we have found that most contractors use the following logic:

Since two conductor speaker wire usually has a black and red conductor, and the black is designated "negative" with the red being "positive",  we use those two conductors for the first speaker. Which speaker? The left, because we do many things from left to right.

This leaves the green and white (or yellow) conductors for the right speaker. Which should be negative? In AC wiring, green is the color of an earth ground, so we use that as negative. Which leaves white for positive.

This works out to:

Speaker
Terminal  Wire
Color
Left
Negative (-)  Black
Left
Positive (+)
 Red
Right
Negative (-)
 Green
Right
Positive (+)
 White or Yellow
