Simple Video Distribution When You Have A Cable Modem

"by Jeff Fisher"

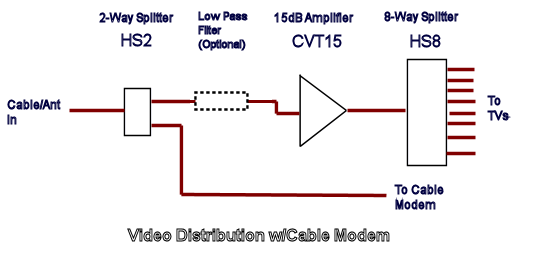

The following diagram shows how you can distribute cable TV to up to eight TVs and still properly connect your cable modem.

Server does not support image manipulation.


Note that the cable modem is only one two-way splitter from the outside world with no amplifier or filter in the way.

It is possible to combine the CVT15 and HS8 by using a CVT28PIA, but we have learned that the separate components work better.

Jeff
